Industrial Video Borescope for Inspection of Hydraulic Components

Categorization : [CASES] Time : 2024-01-18 16:04:06 Scan : 151

  Industrial Borescope Hydraulic Components Manufacturing Enterprise Service Site Summary: VSNDT intelligent million high-definition industrial video borescope can be machined side hole burrs, bottom machining residue and other defects that can not be detected by the naked eye can be clearly embodied, and the perfect solution to the borescope inspection of the phenomenon of reflections of the high brightness holes

  Industry: Hydraulic

  Enterprises: hydraulic components manufacturing enterprises

  Service Instrument: VSNDT intelligent million high-definition series

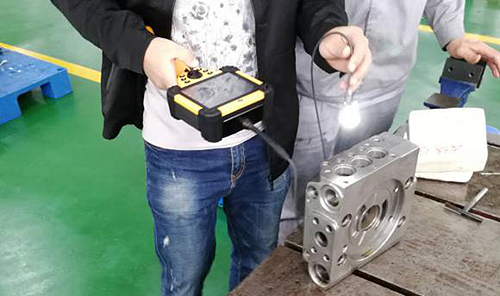

  Service site:


  Detection conditions: cast steel parts, machining side hole burrs, bottom processing residue, workpiece size is 550mmX550mmX180mm internal staggered holes are more, the observation of the hole diameter between 4.5-35mm. The inner hole is high glossy surface.

  Detection difficulties: the inner hole is high glossy surface, high reflection. Part of the aperture diameter is small!

  Solution: using ultra-near-focus depth of field: 3-50mm; automatic exposure to solve the high-gloss bottom reflected light

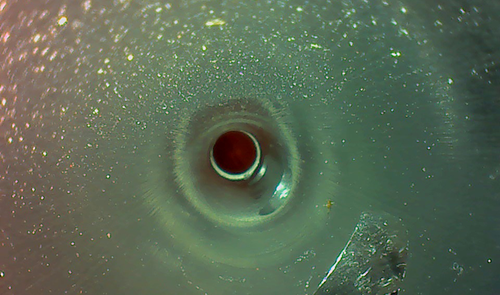

  Detection diagram:



  Service Summary: VSNDT intelligent million high-definition industrial video borescope can be machined side hole burrs, bottom machining residue and other defects that can not be detected by the naked eye can be clearly embodied, and perfectly solved the phenomenon of borescope detection of high-gloss holes reflecting light, the detection process, the workpiece all the defects can be clearly embodied, the user is very satisfied with the borescope service!
