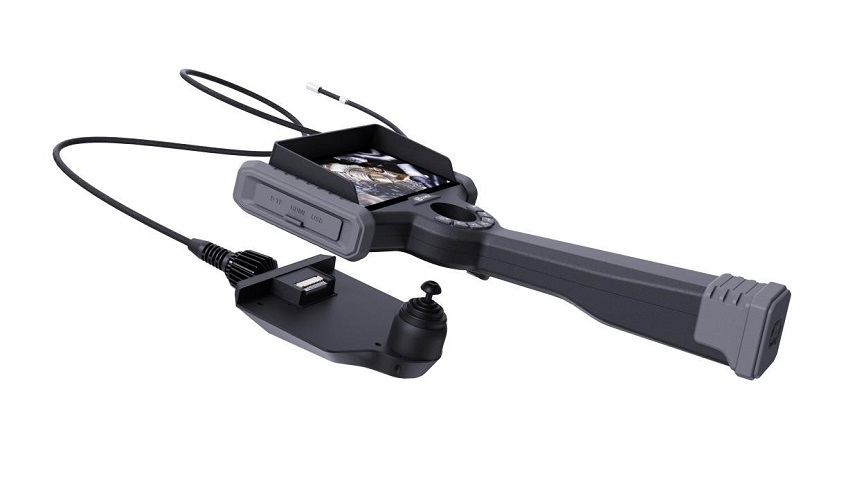

Model：VT-P6010T
Diameter：6mm
Length：1m
DoF：12~200mm
FoV：120°
180° bi-directional head swing
6” TFT Color Display
Picture Taking/Video Recording
Adjustable LED Lighting
Waterproof：IP67
The website only shows part of the products, more products can be consulted to understand. According to your needs precise recommended products, support customization!
Product parameters | |
Host | |
Image resolution | 1920X1080 |
display screen | 6 inch industrial-grade LCD screen |
Output port | TF card slot, HDMI port, Micro USB, headphone jack |
memory | It is equipped with a 32G capacity TF card as standard, and supports up to 128G |
Power supply | ≧ 8 hours of battery life, with dual circuit design, a single battery can also work on (support battery replacement without shutdown) |
Plug standard | GB (default), EU standard, US standard, British standard (except for GB standard, other adapters can be matched) |
Brightness lighting | Rear light: 60000 Lux, Front light: 100000Lux |
Focus factor | Autofocus |
Brightness adjustment | Levels 1-8 |
Magnification | Levels 1-5 |
Environmental | |
Waterproof rating | IP54 |
High pressure resistance | not |
Operating temperature | -10℃～50℃ |
Storage temperature | -20℃~60℃ |
relative humidity | 90% max, non-condensing |
System | |
operating system | Versatile operating system |
How it works | Button navigation, dual photo and video keys |
Support features | It has the functions of freezing, zooming, taking pictures, flipping, video playback, analog ruler, color, black and white, and negative |
file format | Image JPEG (JPG) format, video AVI format |
Supported Languages | Eight Chinese languages are available, including Chinese, English, Russian, Japanese, French, German, Portuguese, and Spanish |
Device dimensions | 375×175×78mm |
Outer packing size | 479×387×155mm |
Package weight | 3.9KG |
Product parameters | |
Tube | |
Camera pixels | 1million pixels |
Camera orientation | Direct view, side view, double view |
Type of lighting | RearED fiber conduction |
Camera diameter | 6mm |
Pipeline length | 1m-10m |
Field of view (θ). | 120° |
Pipeline unidirectional bending angle (ɑ). | Wire length≤2 m: 1 8 0°, 3-5 m: 1 5 0°, tube length≥6 m: 90° |
Swingable end length | 13±0.5mm |
Swingable end bending radius (R). | The length can be modified according to the actual scenario |
Guide | Manually controlled by joystick, 360 ° all-round steering |
Waterproof rating | IP67 |
Operating temperature | -20℃～70℃ |
Pipeline material | Flexible (tungsten braided tube) |

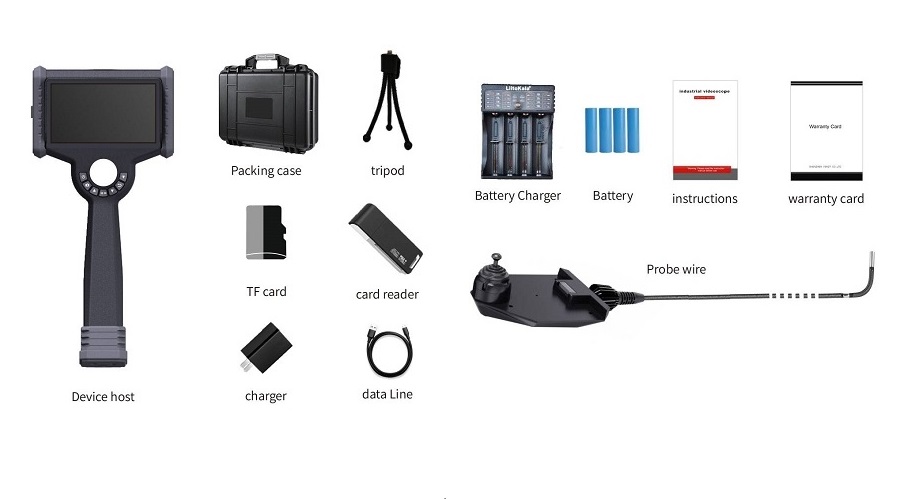

Configure | |
Endoscope host | *1 |
Battery pack | *1 |
Three-proof box | *1 |
Memory card | *1 |
card reader | *1 |
tripod | *1 |
Data cable | USB data cable*1, HDMI cable*1 |
charger | *1 |
Warranty card | *1 |
Instructions | *1 |
Certificate | *1 |
Plug converter | Please check the order details for details |
The VT-P6010T industrial borescope is also very important in machine manufacturing overhaul. The following are some of the main applications:
1. parts quality inspection: in the process of machinery manufacturing, the quality of parts is crucial. vt-p6010t can be used to inspect the internal structure of parts, such as holes, slots, threads, etc., to ensure that the dimensions, shapes, and surface quality of the parts are in accordance with the design requirements.
2. Assembly process monitoring: Assembly is a critical part of the mechanical manufacturing process. the VT-P6010T can be used to monitor critical parts of the assembly process, such as bearing mounting, gear meshing, etc., to ensure the accuracy and quality of the assembly.
3. Production process optimization: By using VT-P6010T industrial endoscope, the production process can be optimized. For example, it is possible to observe the machining process of parts and understand the wear and tear of tools, so as to adjust the machining parameters or replace the tools to improve production efficiency and product quality.
4. Troubleshooting and Diagnosis: In the process of machinery manufacturing, various kinds of faults may occur.VT-P6010T can be used to diagnose the causes of faults, such as observing the wear of bearings, judging the meshing condition of gears, etc., so as to locate and solve the problems quickly.
Overall, the application of VT-P6010T industrial endoscope in machinery manufacturing overhaul helps to improve product quality, optimize the production process, reduce the failure rate, and improve the efficiency and reliability of machinery manufacturing. Through the use of VT-P6010T industrial endoscope, potential problems can be detected early and corresponding repair measures can be taken to ensure the smooth running of the machinery manufacturing process.
