VT-F6010T-Harder rods-6mm Videoscope-1m Length

Product Overview

Model：VT-F6010T

Diameter：6mm

Length：1m

DoF：12~200mm

FoV：120°

180° bi-directional head swing

10” TFT Color Display

Picture Taking/Video Recording

Adjustable LED Lighting

Waterproof：IP67

Specification Download Contact Us TEL

The website only shows part of the products, more products can be consulted to understand.
According to your needs precise recommended products, support customization!

VT-F6010T-Harder rods-6mm Videoscope-1m Length

Technical Parameters Particular About Vsndt Related Products

Technical Parameter

	Product parameters
Host
display screen	10 inch 15.6 inch industrial control grade touch LCD screen
Output port	video output, USB output
memory	It comes with a 32G U disk, which can be expanded up to 1T
Power supply	Connect to the power supply to use
Plug standard	GB (default), EU standard, US standard, British standard (except for GB standard, other adapters can be matched)
Brightness lighting	Rear light: 60000 Lux, Front light: 100000Lux
Focus factor	Autofocus
Brightness adjustment	Levels 1-8
Magnification	Levels 1-5
Environmental
Waterproof rating	IP54
High pressure resistance	not
Operating temperature	-20℃～70℃
Storage temperature	-20℃~60℃
relative humidity	9.5% max, non-condensing
System
operating system	Windows operating system
file format	Image JPEG (JPG) format, videoMP4 format
File management	Support the creation, renaming, moving, and deletion of files and folders in Chinese and English, and storing them in a USB flash drive and copying them
Supported Languages	Eight Chinese languages are available, including Chinese, English, Russian, Japanese, French, German, Portuguese, and Spanish
Image processing	Adaptive Noise Cancellation, Photo, Video, Negative, Flip, Freeze, Online Editing, Graffiti, Postmark

	Product parameters
Tube
Camera pixels	1million pixels
Camera orientation	Direct view, side view, double view
Type of lighting	RearED fiber conduction
Camera diameter	6mm
Pipeline length	1m-10m
Field of view (θ).	120°
depth of field	12mm-200mm
Angle (ɑ).	0°/30°/70°/90°
Waterproof rating	IP67
Operating temperature	-20℃～70℃
Pipeline material	alloy

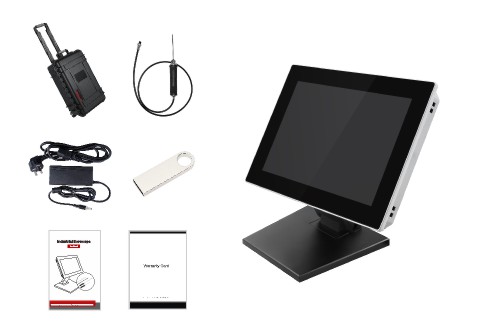

Configure
Endoscope host	*1
pipeline	*1
Three-proof box	*1
flash drive	*1
adapter	*1
Warranty card	*1
Instructions	*1
Certificate	*1
Plug converter	Please check the order details for details

Particular

　　The VT-F6010T Rigid Bar Industrial Borescope is an efficient, non-destructive casting inspection tool that captures the complex structure and surface conditions inside castings with its high-resolution CCD sensor and zoom lens.

　　This borescope has a waterproof and dustproof design that allows it to work stably in harsh environments, while its portable design makes it easier to operate, allowing it to be inspected anytime, anywhere.

　　It not only helps to find defects inside the casting, but also, through the equipped data analysis software, it can quantitatively analyze and compare the detected images to provide early warning of possible problems, thus improving the overall quality and reliability of the casting.

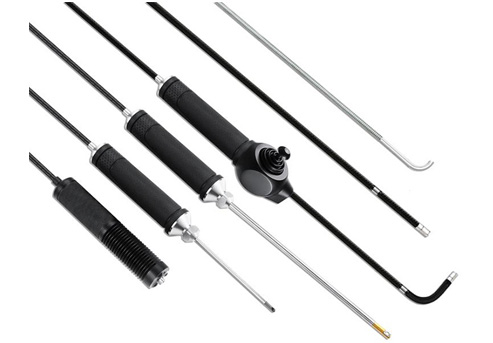

　　Its pipeline material can be done separately to choose, there are alloy hard rod, tungsten hose, elbow hard rod and other types can be done to choose, you can provide testing needs combined with the optional pipeline material, there is a need to contact online customer service.
