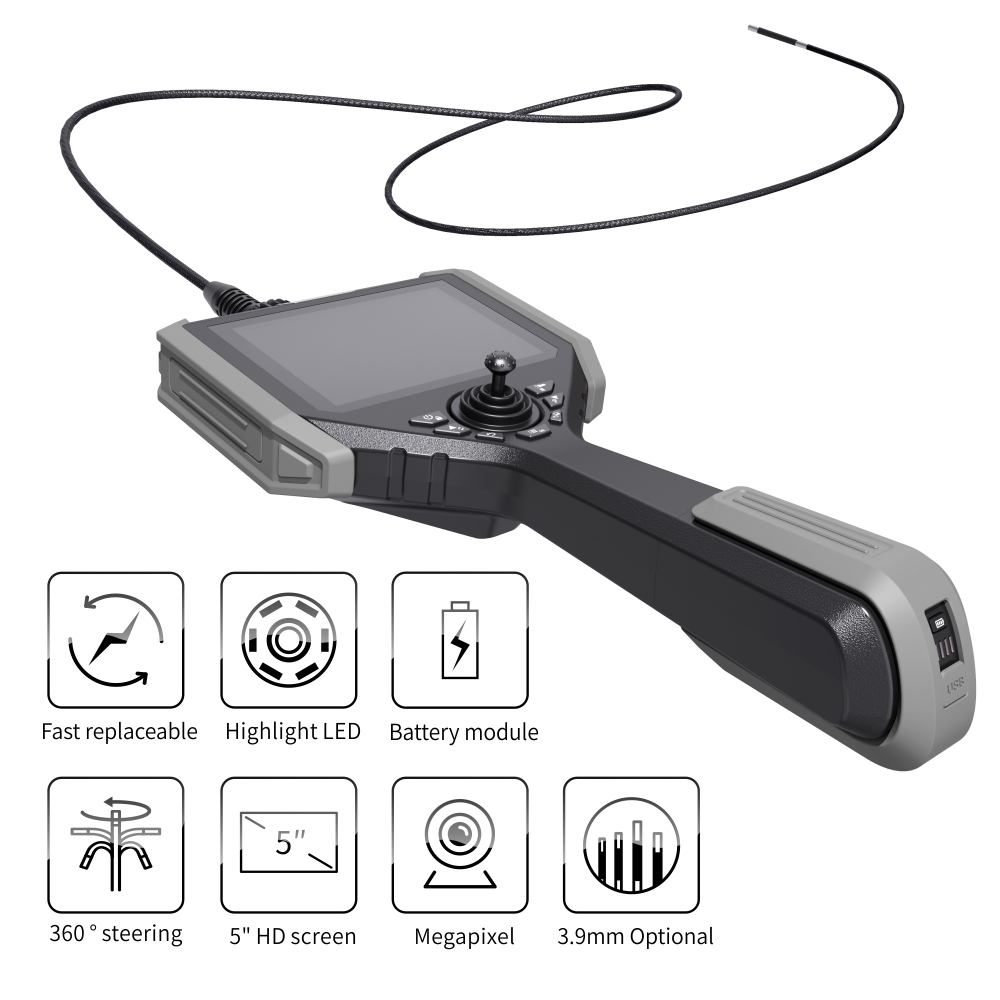

VT-G3910T-Joystick Articulation-3.9mm Videoscope-1m Length

Product Overview

Model:VT-G3910T

Diameter:3.9mm

Length:1m

DoF:8~150mm

FoV:120°

Joystick articulated, 360° swing

5” TFT Color Display

Picture Taking/Video Recording

Adjustable LED Lighting

Waterproof:IP67



The website only shows part of the products, more products can be consulted to understand.
According to your needs precise recommended products, support customization!

Technical Parameter


Product parameters

Host

Image resolution

1280*720 (1million pixels), 4 00*400 (160,000 pixels).

display screen

5 inch industrial-grade LCD screen

Output port

TF card slot, HDMI interface, Micro USB interface

memory

32G

Power supply

1 dedicated rechargeable lithium battery pack (removable), which can be charged online, and the battery life is ≧ 4 hours

Charging parameters

DC 5V

Plug standard

GB (default), EU standard, US standard, British standard (except for GB standard, other adapters can be matched)

Brightness lighting

Rear light: 60,000 Lux, Front light: 100,000 Lux

Focus factor

Autofocus

Brightness adjustment

Levels 1-8

Magnification

Levels 1-5

Environmental

Waterproof rating

IP54

High pressure resistance

not

Operating temperature

-10℃50℃

Storage temperature

-20℃~60℃

relative humidity

90% max, non-condensing

System

operating system

Versatile operating system

How it works

Button navigation, dual photo and video keys

Support features

With freeze, zoom, photo, flip, video, playback

file format

Image JPEG (JPG) format, video AVI format

Supported Languages

Eight Chinese languages are available, including Chinese, English, Russian, Japanese, French, German, Portuguese, and Spanish

Optional features

WIFI transmission, temperature warning, analog ruler function, dual-screen synchronous display

Note: The optional function must be customized by the manufacturer, and the default standard model does not have the above functions

Device dimensions

350*155*59mm

Outer packing size

479*387*155

Package weight

3.6KG


Product parameters

Tube

Camera pixels

1million pixels

Camera orientation

Direct view, side view, double view

Type of lighting

RearED fiber conduction

Camera diameter

3.9mm

Pipeline length

1m

Field of view (θ).

120°

Depth of field

8-150mm

Pipeline unidirectional bending angle (ɑ).

≥180°

Swingable end length

13±0.5mm

Swingable end bending radius (R).

The length can be modified according to the actual scenario

Guide

Manually controlled by joystick, 360 ° all-round steering

Waterproof rating

IP67

Operating temperature

-20℃70℃

Pipeline material

Flexible (tungsten braided tube)

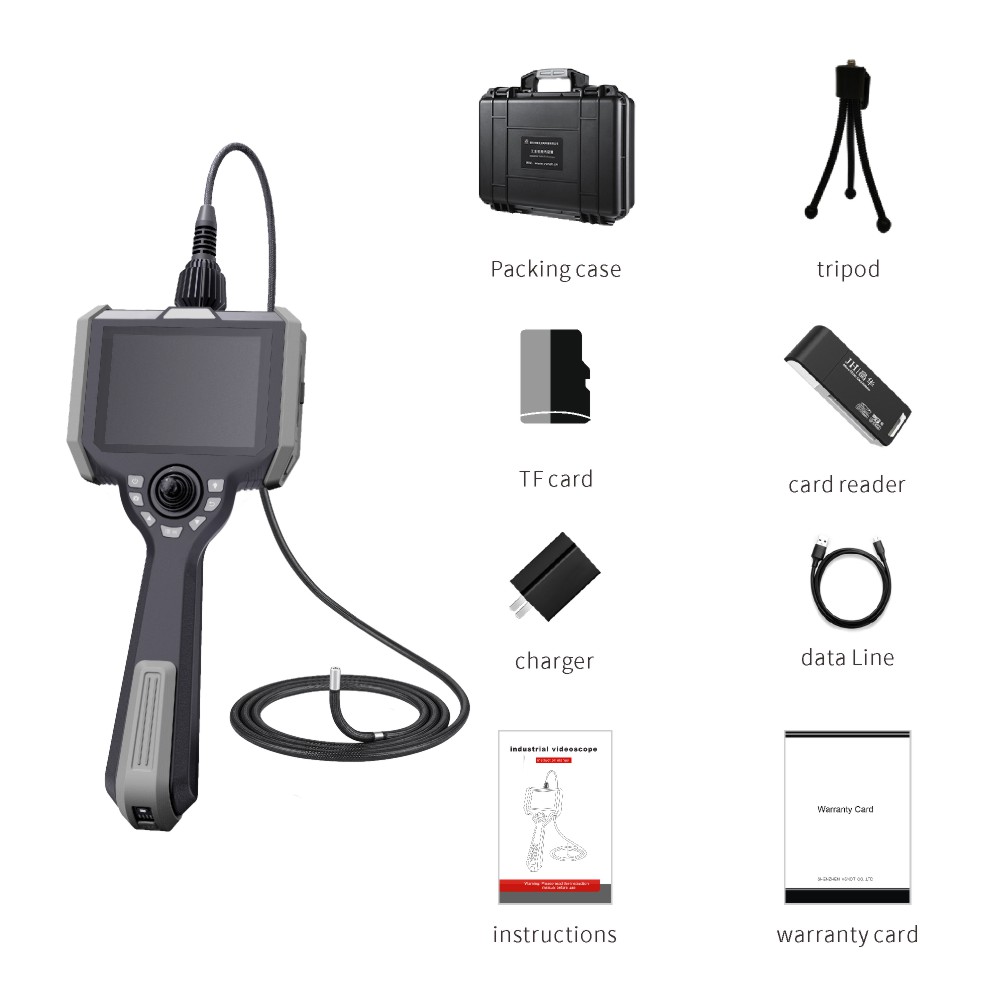

Configure

Endoscope host

*1

Battery pack

*1

Three-proof box

*1

Memory card

*1

card reader

*1

tripod

*1

Data cable

USB data cable*1, HDMI cable*1

charger

*1

Warranty card

*1

Instructions

*1

Certificate

*1

Plug converter

Please check the order details for details





Particular

  VT-G3910T industrial endoscope has an important application in the field of pipeline welding. In the process of pipeline production, welding is an inevitable link, and the quality of welding will directly affect the service life and safety of the pipeline.

  Using VT-G3910T industrial endoscope technology, the welding quality of the internal weld seam of the pipeline can be detected, and whether the welding quality meets the standard can be judged. Specifically, the industrial endoscope can observe the features such as welding position, welding depth, welding width and structure of the weld seam, so as to comprehensively evaluate the welding quality inside the pipeline.

  This non-destructive testing method not only improves the detection efficiency, but also ensures the accuracy of detection, helping to identify problems in a timely manner and take corresponding repair measures to ensure the safe operation of the pipeline.


About VSNDT

Shenzhen VSNDT Co Ltd is a nationalhigh-tech enterprise engaged in industrial endoscope productdesign, technology development,production and sales, technicalservices, focus on NDT (Non-destructive testing)in China.We areR&D driven manufacturer and has 10 years working experienceof video borescopes design, software development, and assembly.
Our head office is located in Shenzhen, ourowned factory, Research Developing Center are in Songshan Lake Science park in Dongguan. Our engineers can base on your working production environment tomake design a mock-up with full unction, then start to tooling and customized borescopes are perfectly used in youapplication no matter what ls industral or commerclal.
OEM / ODM / 0BM order is welcome . We can set up a long business relationship with overseas business partners andwe are looking forward to seeking the global co-operation agents for our products.
