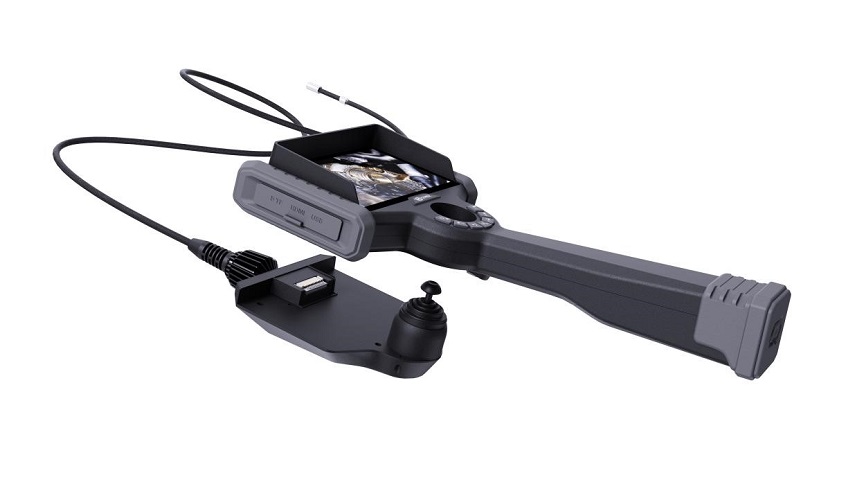

VT-P6010T-Joystick Articulation-6mm Videoscope-1m Length

Product Overview

Model：VT-P6010T

Diameter：6mm

Length：1m

DoF：12~200mm

FoV：120°

180° bi-directional head swing

6” TFT Color Display

Picture Taking/Video Recording

Adjustable LED Lighting

Waterproof：IP67

Specification Download Contact Us TEL

The website only shows part of the products, more products can be consulted to understand.
According to your needs precise recommended products, support customization!

VT-P6010T-Joystick Articulation-6mm Videoscope-1m Length

Technical Parameters Particular About Vsndt Related Products

Technical Parameter

	Product parameters
Host
Image resolution	1920X1080
display screen	6 inch industrial-grade LCD screen
Output port	TF card slot, HDMI port, Micro USB, headphone jack
memory	It is equipped with a 32G capacity TF card as standard, and supports up to 128G
Power supply	≧ 8 hours of battery life, with dual circuit design, a single battery can also work on (support battery replacement without shutdown)
Plug standard	GB (default), EU standard, US standard, British standard (except for GB standard, other adapters can be matched)
Brightness lighting	Rear light: 60000 Lux, Front light: 100000Lux
Focus factor	Autofocus
Brightness adjustment	Levels 1-8
Magnification	Levels 1-5
Environmental
Waterproof rating	IP54
High pressure resistance	not
Operating temperature	-10℃～50℃
Storage temperature	-20℃~60℃
relative humidity	90% max, non-condensing
System
operating system	Versatile operating system
How it works	Button navigation, dual photo and video keys
Support features	It has the functions of freezing, zooming, taking pictures, flipping, video playback, analog ruler, color, black and white, and negative
file format	Image JPEG (JPG) format, video AVI format
Supported Languages	Eight Chinese languages are available, including Chinese, English, Russian, Japanese, French, German, Portuguese, and Spanish
Device dimensions	375×175×78mm
Outer packing size	479×387×155mm
Package weight	3.9KG

	Product parameters
Tube
Camera pixels	1million pixels
Camera orientation	Direct view, side view, double view
Type of lighting	RearED fiber conduction
Camera diameter	6mm
Pipeline length	1m-10m
Field of view (θ).	120°
Pipeline unidirectional bending angle (ɑ).	Wire length≤2 m: 1 8 0°, 3-5 m: 1 5 0°, tube length≥6 m: 90°
Swingable end length	13±0.5mm
Swingable end bending radius (R).	The length can be modified according to the actual scenario
Guide	Manually controlled by joystick, 360 ° all-round steering
Waterproof rating	IP67
Operating temperature	-20℃～70℃
Pipeline material	Flexible (tungsten braided tube)

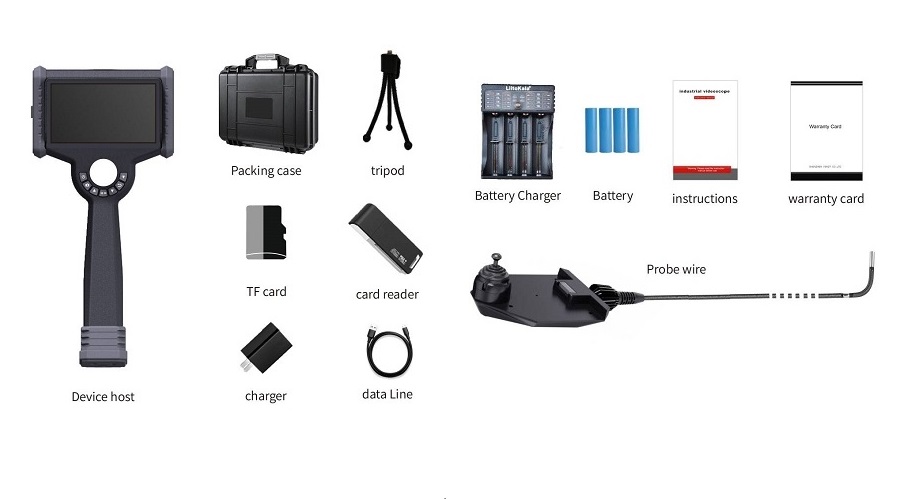

Configure
Endoscope host	*1
Battery pack	*1
Three-proof box	*1
Memory card	*1
card reader	*1
tripod	*1
Data cable	USB data cable1, HDMI cable1
charger	*1
Warranty card	*1
Instructions	*1
Certificate	*1
Plug converter	Please check the order details for details

Particular

　　The VT-P6010T industrial borescope is also very important in machine manufacturing overhaul. The following are some of the main applications:

　　1. parts quality inspection: in the process of machinery manufacturing, the quality of parts is crucial. vt-p6010t can be used to inspect the internal structure of parts, such as holes, slots, threads, etc., to ensure that the dimensions, shapes, and surface quality of the parts are in accordance with the design requirements.

　　2. Assembly process monitoring: Assembly is a critical part of the mechanical manufacturing process. the VT-P6010T can be used to monitor critical parts of the assembly process, such as bearing mounting, gear meshing, etc., to ensure the accuracy and quality of the assembly.

　　3. Production process optimization: By using VT-P6010T industrial endoscope, the production process can be optimized. For example, it is possible to observe the machining process of parts and understand the wear and tear of tools, so as to adjust the machining parameters or replace the tools to improve production efficiency and product quality.

　　4. Troubleshooting and Diagnosis: In the process of machinery manufacturing, various kinds of faults may occur.VT-P6010T can be used to diagnose the causes of faults, such as observing the wear of bearings, judging the meshing condition of gears, etc., so as to locate and solve the problems quickly.

　　Overall, the application of VT-P6010T industrial endoscope in machinery manufacturing overhaul helps to improve product quality, optimize the production process, reduce the failure rate, and improve the efficiency and reliability of machinery manufacturing. Through the use of VT-P6010T industrial endoscope, potential problems can be detected early and corresponding repair measures can be taken to ensure the smooth running of the machinery manufacturing process.
