VT-Y3910T-Joystick Articulation-3.9mm Videoscope-1m Length

Product Overview

Model：VT-Y3910T

Diameter：3.9mm

Length：1m

DoF：8~150mm

FoV：120°

Joystick articulated, 360° swing

5.7” TFT Color Display

Picture Taking/Video Recording

Adjustable LED Lighting

Waterproof：IP67

Specification Download Contact Us TEL

The website only shows part of the products, more products can be consulted to understand.
According to your needs precise recommended products, support customization!

VT-Y3910T-Joystick Articulation-3.9mm Videoscope-1m Length

Technical Parameters Particular About Vsndt Related Products

Technical Parameter

	Product parameters
Host
Image resolution	1280720 (1million pixels), 4 00400 (160,000 pixels).
display screen	5.7 inch industrial-grade touch LCD screen
Audio output	3.5mm headphone/microphone jack
Output port	VGA video output (dual-screen synchronous display), dual USB output ports
memory	Built-in 64G SSD

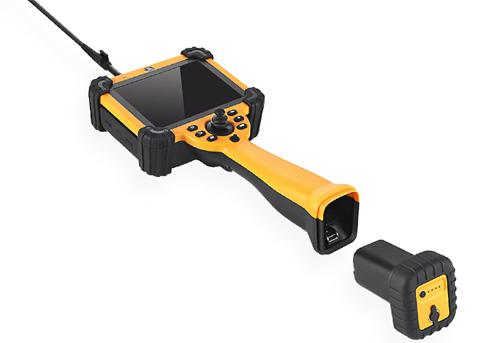

Power supply	1 dedicated rechargeable lithium battery pack (removable), which can be charged online, and the battery life is ≧ 4 hours
Charging parameters	DC 5V
Plug standard	GB (default), EU standard, US standard, British standard (except for GB standard, other adapters can be matched)
Brightness lighting	Rear lights: 60000 Lux, front lights: 100000Lux
Focus factor	Autofocus
Brightness adjustment	Levels 1-8
Magnification	Levels 1-5
Environmental
Waterproof rating	IP54
High pressure resistance	not
Operating temperature	-20℃～70℃
Storage temperature	-20℃~60℃
relative humidity	95% max, non-condensing
System
operating system	WES operating system
How it works	Full-screen touch and button dual operation, five-way navigation button, dual photo and video buttons
Support features	Comparative measurement, automatic defect identification, real-time dynamic annotation, real-time screen watermarking, and rapid defect identification
file format	Image JPEG (JPG) format, video MP4 format
File management	It supports the creation, renaming, moving, and deletion of files and folders in Chinese and English, and storing them in an internal hard disk or U disk, which can realize two-way copying between U disk and hard disk
Supported Languages	Eight Chinese languages are available, including Chinese, English, Russian, Japanese, French, German, Portuguese, and Spanish
Image processing	Adaptive Noise Cancellation, Photo, Video, Negative, Flip, Freeze, Online Editing, Graffiti, Postmark
Device dimensions	36016060mm
Outer packing size	557350240mm
Package weight	6.5KG

	Product parameters
Tube
Camera pixels	1million pixels
Camera orientation	Direct view, side view, double view
Type of lighting	RearED fiber conduction
Camera diameter	3.9mm
Pipeline length	1m
Field of view (θ).	120°
Depth of field	8-150mm
Pipeline unidirectional bending angle (ɑ).	180°
Swingable end length	13±0.5mm
Swingable end bending radius (R).	The length can be modified according to the actual scenario
Guide	Manually controlled by joystick, 360 ° all-round steering
Waterproof rating	IP67
Operating temperature	-20℃～70℃
Pipeline material	Flexible (tungsten braided tube)

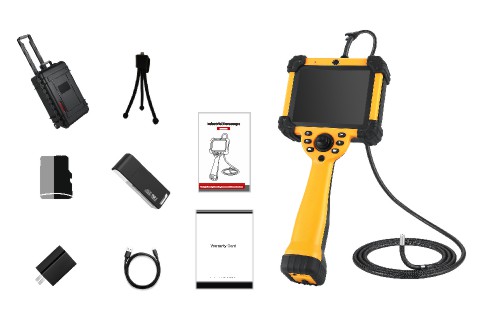

Configure
Endoscope host	*1
Battery pack	*1
Three-proof box	*1
flash drive	*1
adapter	*1
tripod	*1
VGA line	*1
Strap	*1
Touch pen	*1
Warranty card	*1
Instructions	*1
Certificate	*1
Plug converter	Please check the order details for details

Particular

　　VT-Y3910T industrial endoscope has a wide range of applications in the rail transit field.

　　It can be used to inspect the internal structure of rail transit vehicles, such as the body, bogies, and braking systems, to ensure their stability and safety.

　　At the same time, it can also be used to inspect the internal structure of track connection parts, switch points, sleepers, and other components to ensure the stability and safety of the track. In addition, VT-Y3910T can also be used to inspect the internal structure of signal equipment, such as signal lights and switch machines, to ensure their normal operation.

　　Furthermore, it can be used to inspect the internal structure of power supply equipment, such as catenary and substations, to ensure their stable operation. This non-destructive testing method helps to detect potential problems early and take corresponding repair measures to ensure the stability and efficiency of the rail transit system.

About VSNDT

Shenzhen VSNDT Co Ltd is a nationalhigh-tech enterprise engaged in industrial endoscope productdesign, technology development,production and sales, technicalservices, focus on NDT (Non-destructive testing)in China.We areR&D driven manufacturer and has 10 years working experienceof video borescopes design, software development, and assembly.
Our head office is located in Shenzhen, ourowned factory, Research Developing Center are in Songshan Lake Science park in Dongguan. Our engineers can base on your working production environment tomake design a mock-up with full unction, then start to tooling and customized borescopes are perfectly used in youapplication no matter what ls industral or commerclal.
OEM / ODM / 0BM order is welcome . We can set up a long business relationship with overseas business partners andwe are looking forward to seeking the global co-operation agents for our products.
